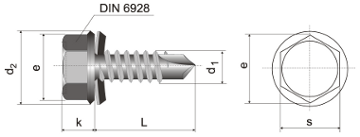

| DIN 7504 K with
EPDM BN 10319 |
|||
|---|---|---|---|
 |
|||
| d1 | 4.8 | 5.5 | 6.3 |
| d2 | 10.5 | 11 | 13.2 |
| k | 4.45 | 5.45 | 6.45 |
| s | 8 | 8 | 10 |

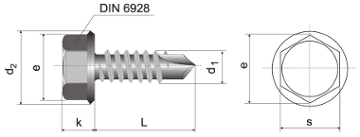

| DIN 7504 K without
EPDM BN 14729 |
||||
|---|---|---|---|---|
 |
||||
| d1 | 4.2 | 4.8 | 5.5 | 6.3 |
| d2 | 8.8 | 10.5 | 11 | 13.2 |
| k | 4.25 | 4.45 | 5.45 | 6.45 |
| s | 7 | 8 | 8 | 10 |

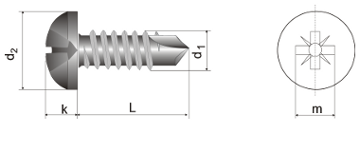

| DIN 7504 N BN 14727 |
||||
|---|---|---|---|---|
 |
||||
| d1 | 3.5 | (3.9) | 4.2 | 4.8 |
| d2 | 6.9 | 7.5 | 8.2 | 9.5 |
| k | 2.6 | 2.8 | 3.05 | 3.55 |

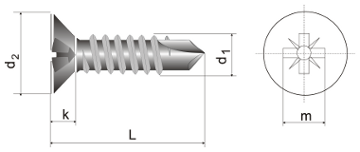

| DIN 7504 P BN 14728 |
||||
|---|---|---|---|---|
 |
||||
| d1 | 3.5 | (3.9) | 4.2 | 4.8 |
| d2 | 6.8 | 7.5 | 8.1 | 9.5 |
| k | 2.1 | 2.3 | 2.5 | 3 |

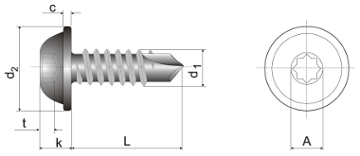

| DIN 7504 with
flange – internal oktaedge BN 1387 |
||
|---|---|---|
 |
||
| d1 | 4.2 | 4.8 |
| d2 | 9.7 | 11.1 |
| Stainless steel washer with
EPDM (syntetick rubber etylen, propylen, dien) |
||
|---|---|---|
 |
||
| For diameter | 4.5 – 5.5 | 6.3 – 6.5 |
| D | 14 | 16 |
Recommended sheet thickness h [mm]:
| d1 | 2.9 | 3.5 | (3.9) | 4.2 | 4.8 | 5.5 | 6.3 |
| h [mm] | 0.7 – 1.9 | 0.7 – 2.25 | 0.7 – 2.4 | 1.75 – 3.0 | 1.75 – 4.4 | 1.75 – 5.25 | 2.0 – 6.0 |
Commercial lengths L [mm]: 9.5 – 13 – 16 – 19 – 22 – 25 – 32 – 38 – 45 – 50
